General Electric (GE) Model 200 (left) and 201 Table Radios (1946)
Two neat GE table tops from 1946, one made of attractive swirled bakelite and the other of ivory plaskon.
Both have the same chassis with a 6-tube line-up:- 35L6GT (power output), 35Z5GT (rectifier), 12SG7 (RF
amp), 12SA7 (mixer/LO), 12SK7 (IF amp) and 12SQ7 (detector/AVC/ 1st AF amp). The use of an RF stage
provides these sets with good sensitivity and selectivity. Band coverage is Standard Broadcast from
540-1600kc.

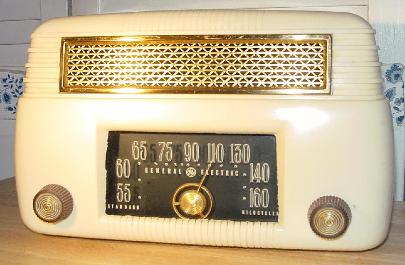

The plaskon model 201 is usually found with tiny hairlines above the left and right sides of the metallic grille,
running up and a little way over the top. The model here has one small hairline on the right side only, though
it can't be seen in the photo. I don't think I've ever seen one without at least one.
A word of caution with these sets regarding the dial. Although the main lettering is on the rear side of the dial
glass, there is some secondary shading printed on the front of the glass that is very easily removed during
cleaning. When I got the plaskon model, I set about cleaning the dial and had removed all the shadowing
before I realized it. Sometime later I found a junker set that had a perfect dial glass, so I was able to swap out
the glass and restore the model here to its former glory.

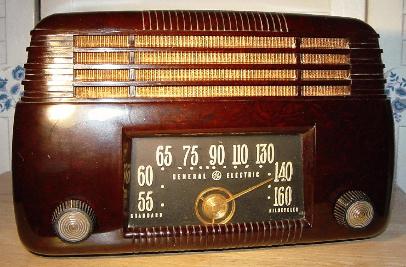

I got the model 200 later and the shadowing effect had long gone from the dial glass. I haven't found another
original dial glass for this one, though there are probably reproductions available.
There is also a model 202 that is brown bakelite but otherwise the same as model 201. Models 203 and 205
came in wooden cabinets.
Both have the same chassis with a 6-tube line-up:- 35L6GT (power output), 35Z5GT (rectifier), 12SG7 (RF
amp), 12SA7 (mixer/LO), 12SK7 (IF amp) and 12SQ7 (detector/AVC/ 1st AF amp). The use of an RF stage
provides these sets with good sensitivity and selectivity. Band coverage is Standard Broadcast from
540-1600kc.
The plaskon model 201 is usually found with tiny hairlines above the left and right sides of the metallic grille,
running up and a little way over the top. The model here has one small hairline on the right side only, though
it can't be seen in the photo. I don't think I've ever seen one without at least one.
A word of caution with these sets regarding the dial. Although the main lettering is on the rear side of the dial
glass, there is some secondary shading printed on the front of the glass that is very easily removed during
cleaning. When I got the plaskon model, I set about cleaning the dial and had removed all the shadowing
before I realized it. Sometime later I found a junker set that had a perfect dial glass, so I was able to swap out
the glass and restore the model here to its former glory.
I got the model 200 later and the shadowing effect had long gone from the dial glass. I haven't found another
original dial glass for this one, though there are probably reproductions available.
There is also a model 202 that is brown bakelite but otherwise the same as model 201. Models 203 and 205
came in wooden cabinets.
 | |  | |  | |  | |  | |  | |  | |  | |  | |  | |  | |  |
