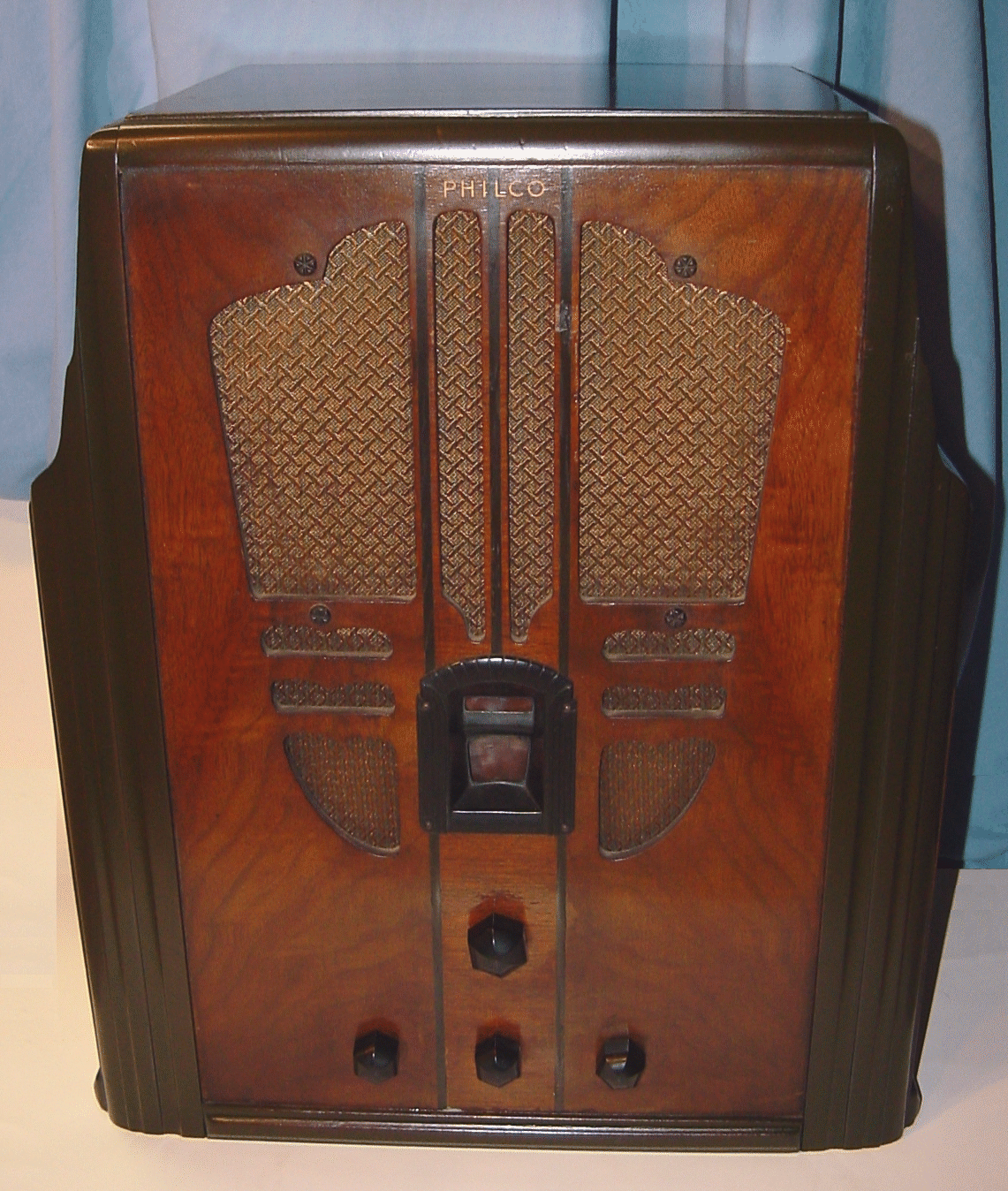

Philco Model 118B Tombstone Radio (1935)
Introduced in early 1935, this Philco 118B is the
tombstone version of the cathedral set introduced
earlier in the model year. It listed at $69.50 in the
East and at $72.50 out West.
The 118B is an 8-tube ac-powered super-het, cover-
ing standard broadcast (540 to 1720kc) and short-
wave (4.2 to 12.0mc). Tube line-up is 78 (rf amp),
6A7 (mixer/LO), 78 (IF), 75 (2nd det/AVC/1st AF),
42 (audio driver), 2 * 42 (push-pull AF output) and
80 (rectifier). The triode-connected output stage op-
erates in "super class A" and delivers a room-filling
10 Watts. The radio features 4-point tone control,
shadow-graph tuning and automatic-volume-control
(AVC). The schematic may be obtained here, court-
esy of NostalgiaAir.
I bought this radio at the New
England Antique Radio (NEARC)show in 2005. The
top had been stripped plus there was some very
noticeable finish loss on the the left front fluting. I
therefore refinished the top and both front fluted
side pieces. The front panel and sides remain
original, as does the grille cloth.
It was in working order when I bought it though a
chassis inspection has since revealed that only the
filter capacitors were replaced. From the sound of
it, it needs a complete re-cap.
tombstone version of the cathedral set introduced
earlier in the model year. It listed at $69.50 in the
East and at $72.50 out West.
The 118B is an 8-tube ac-powered super-het, cover-
ing standard broadcast (540 to 1720kc) and short-
wave (4.2 to 12.0mc). Tube line-up is 78 (rf amp),
6A7 (mixer/LO), 78 (IF), 75 (2nd det/AVC/1st AF),
42 (audio driver), 2 * 42 (push-pull AF output) and
80 (rectifier). The triode-connected output stage op-
erates in "super class A" and delivers a room-filling
10 Watts. The radio features 4-point tone control,
shadow-graph tuning and automatic-volume-control
(AVC). The schematic may be obtained here, court-
esy of NostalgiaAir.
I bought this radio at the New
England Antique Radio (NEARC)show in 2005. The
top had been stripped plus there was some very
noticeable finish loss on the the left front fluting. I
therefore refinished the top and both front fluted
side pieces. The front panel and sides remain
original, as does the grille cloth.
It was in working order when I bought it though a
chassis inspection has since revealed that only the
filter capacitors were replaced. From the sound of
it, it needs a complete re-cap.
Tone, performance and beauty that make Philco the last word in radio.
| A powerful Baby Grand that gives you thrilling reception of both foreign and American programs. Stunning hand-rubbed cabinet of distinctively new design. Tone, performance and beauty that make Philco the last word in radio! |
