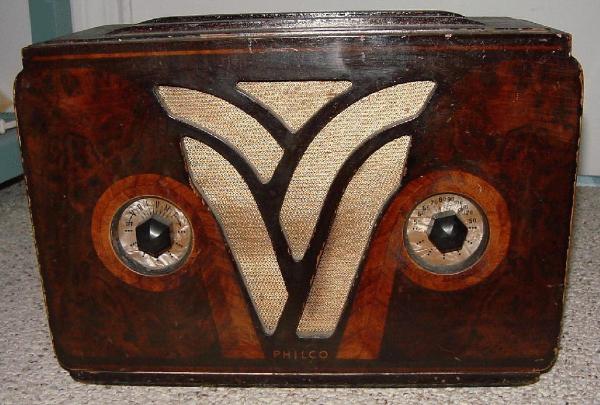

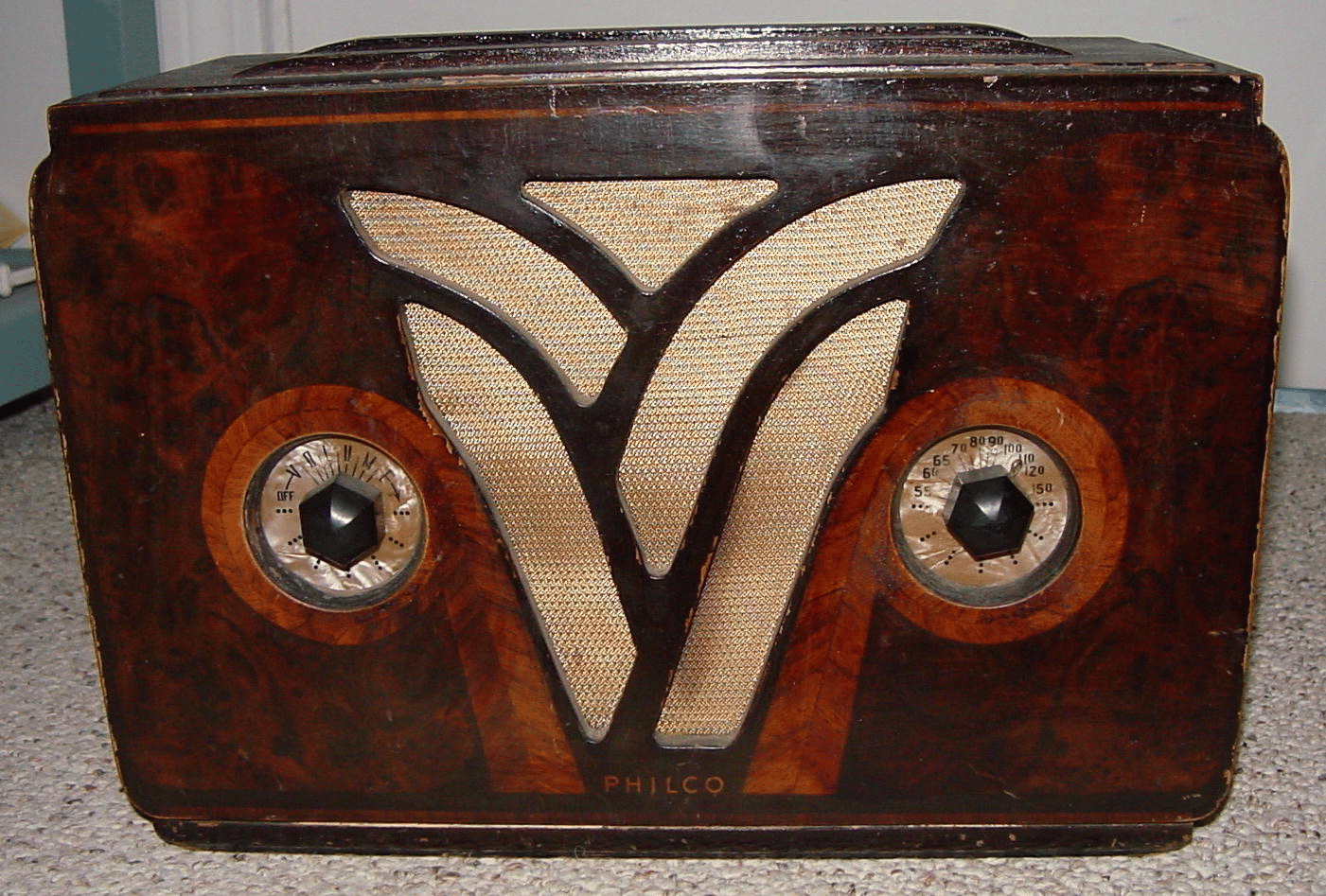

This Philco model 54S "owl eye" radio was
offered as an alternate styling to the early
model 54C (which looks like the early 59C).
This compact cabinet contains a 5-tube two-
band superheterodyne receiver designed for
ac/dc operation. It was introduced in June of
1934 with a list price of $35 ($37.50 West of
the Rockies). The front of the cabinet uses
photo-finish and this same cabinet was also
used for the companion (ac-only) model 59S
(priced at $29.95).
This is a 5-tube ac/dc-powered superhet
with tube line-up 6A7 (mixer/LO), 78 (IF), 75
(2nd det/agc/1st AF), 43 (power output) and
25Z5 (rectifier). Band coverage is standard
broadcast from 540-1500kc and shortwave
from 1.5-3.2mc. The waveband selector
switch is at the rear. Two wire-wound
resistance columns, mounted in the rear of
the chassis, are used as filament voltage
droppers. Both the 54C and 54S use the
same two-band 5-tube chassis. Schematic.
This radio is a fully fledged superhet with a
very respectable performance. Its highly
compact chassis is an excellent example of
early miniaturization!
