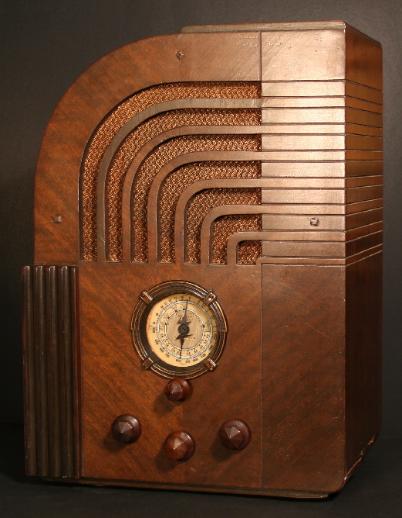

Zenith Model 811 Art Deco Tombstone Radio (1935)
 | |  | |  | |  | |  | |  | |  | |  | |  | |  | |  | |  |
Copyright TubeRadioLand.com

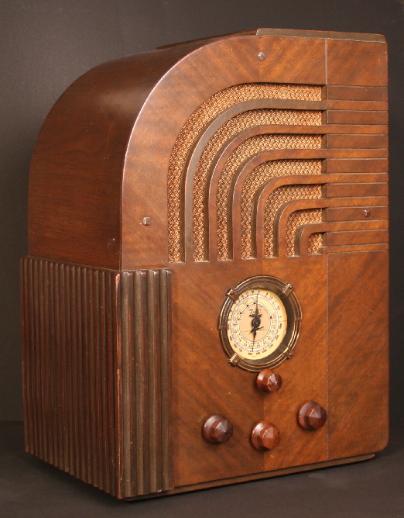

The Zenith 811 tombstone radio is an ultra rare and unusual model
that is a masterpiece of Art deco design. According to Cones, Bry-
ant and Blankinship, in their book "Zenith Radio The Early Years",
the 811 was possibly styled by Rosenow & Company of Chicago,
responsible for the contemporaneous models 809, 829 and 835, or
perhaps by Robert Budlong, who consulted with Zenith on cabinet
design for many years and later on did the industrial design for
such sets as the 6-D-311/315.
The 6-tube model 811 was introduced in the second half of 1934 for
the 1935 model year, along with Zenith's other small white dial sets.
The original sales price was $54.95, placing it on a par price wise
with the model 809 (6 tubes) and between models 808 and 829 (6
and 7 tubes respectively) in Zenith's 1935 line-up of table sets.
Why is this set so rare? One can only conjecture. Perhaps it's
because its bold, radical styling left most prospective purchasers,
while admiring the set, feeling that one of Zenith's more traditional
models would be better suited to their home decor. The fact that the
811 uses an ac/dc chassis may not have helped matters either,
especially given that it directly competed with Zenith's popular 808
model, an ac set also using 6 tubes that cost $5 less. Combine
these considerations with a dearth of advertising by Zenith, low
production numbers, and a cabinet of somewhat fragile constitution
and perhaps some of the elusiveness can be explained.
It's an unfortunate fact that many of the Art Deco sets from the tube
radio era are today, for various reasons, very rare finds and as a
result most are highly coveted by collectors. I paid a veritable King's
Ransom for this set, one that, from my perspective, places it firmly
in the realm normally reserved for catalins!
that is a masterpiece of Art deco design. According to Cones, Bry-
ant and Blankinship, in their book "Zenith Radio The Early Years",
the 811 was possibly styled by Rosenow & Company of Chicago,
responsible for the contemporaneous models 809, 829 and 835, or
perhaps by Robert Budlong, who consulted with Zenith on cabinet
design for many years and later on did the industrial design for
such sets as the 6-D-311/315.
The 6-tube model 811 was introduced in the second half of 1934 for
the 1935 model year, along with Zenith's other small white dial sets.
The original sales price was $54.95, placing it on a par price wise
with the model 809 (6 tubes) and between models 808 and 829 (6
and 7 tubes respectively) in Zenith's 1935 line-up of table sets.
Why is this set so rare? One can only conjecture. Perhaps it's
because its bold, radical styling left most prospective purchasers,
while admiring the set, feeling that one of Zenith's more traditional
models would be better suited to their home decor. The fact that the
811 uses an ac/dc chassis may not have helped matters either,
especially given that it directly competed with Zenith's popular 808
model, an ac set also using 6 tubes that cost $5 less. Combine
these considerations with a dearth of advertising by Zenith, low
production numbers, and a cabinet of somewhat fragile constitution
and perhaps some of the elusiveness can be explained.
It's an unfortunate fact that many of the Art Deco sets from the tube
radio era are today, for various reasons, very rare finds and as a
result most are highly coveted by collectors. I paid a veritable King's
Ransom for this set, one that, from my perspective, places it firmly
in the realm normally reserved for catalins!
scroll down for more..
| "Zenith 811 - Triple Filtering. Operates on AC or DC current. Six-tube. Gets American and Foreign stations, police, amateur and airplane conversations. Tunes from 535 - 18,750 kilocycles. 18" High (ed: approx)" |
| Technical Details |

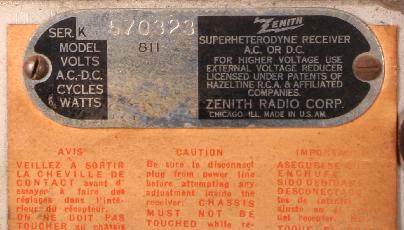

The Zenith 811 is a 6-tube ac/dc superheterodyne that tunes the
standard broadcast and police/amateur/foreign frequencies in
three bands. The tube line-up is 6D6 (RF amp), 6A7 (mixer/LO),
6D6 (IF amp), 75 (2nd det/AVC/1st AF), 43 (power amp) & 25Z5
(rectifier). The set uses a resistive line cord. Schematic.
standard broadcast and police/amateur/foreign frequencies in
three bands. The tube line-up is 6D6 (RF amp), 6A7 (mixer/LO),
6D6 (IF amp), 75 (2nd det/AVC/1st AF), 43 (power amp) & 25Z5
(rectifier). The set uses a resistive line cord. Schematic.
Zenith "small white dial" series

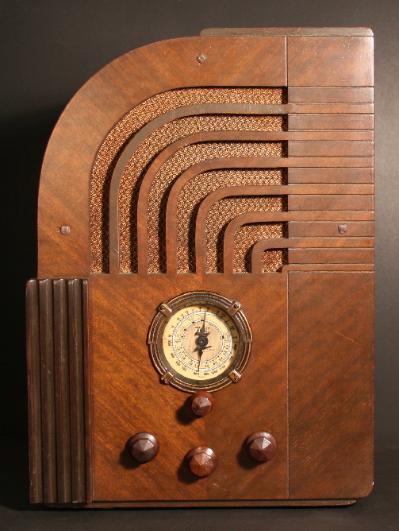

Note: I believe the escutcheon is mounted top-down on my set - the wider half should be at the bottom, as on my 809. Since it is retained by means of four small brass screws, correcting
this is a simple matter.
this is a simple matter.
See footnote regarding escutcheon orientation.
